What Is Back Band Trim?

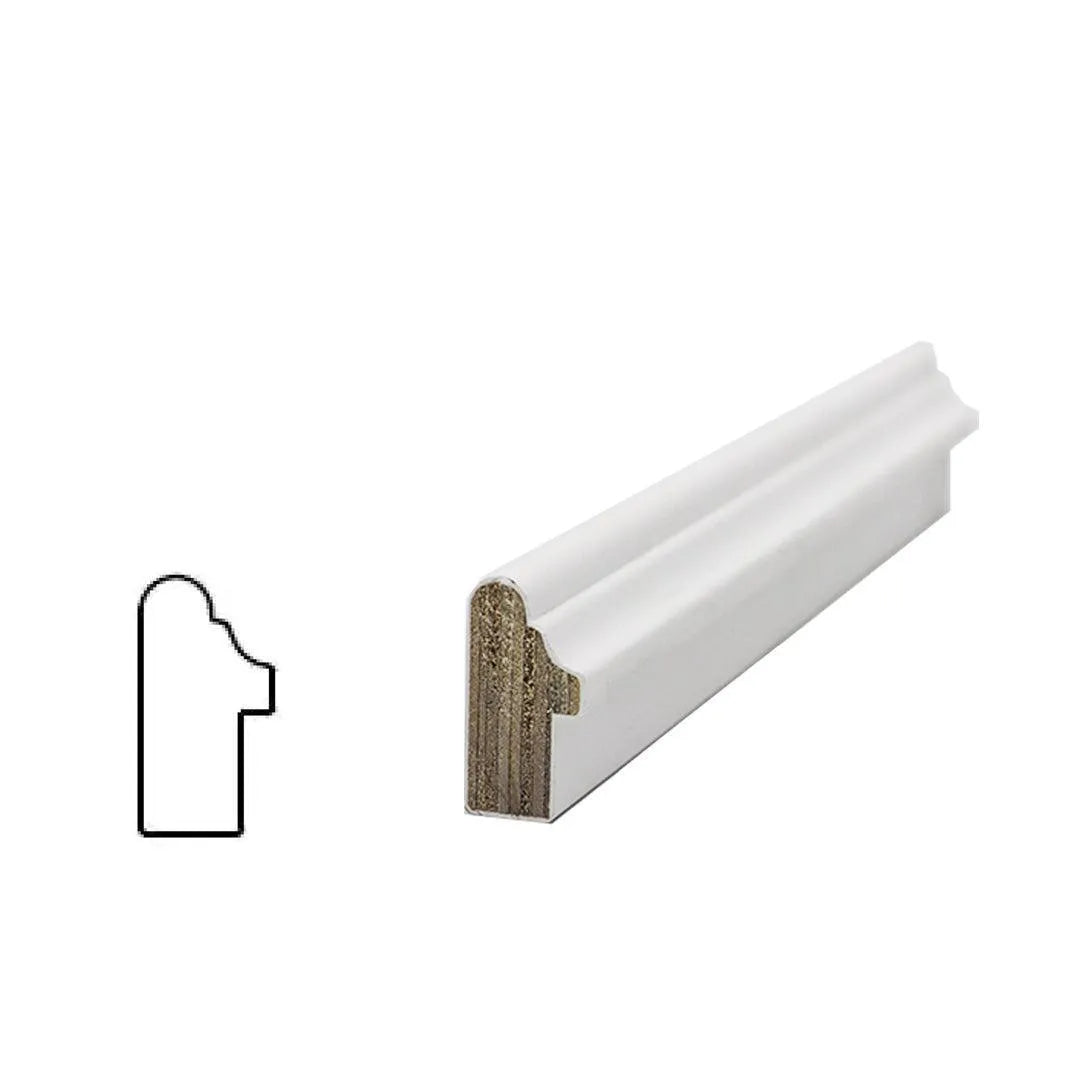

Back band trim is a narrow moulding that wraps around the outer edge of a door or window casing to add depth, thickness and a finished, custom look. It does not replace the casing — it frames it, stepping out past the casing’s outer edge to create a stronger shadow line. Back band is one of the simplest ways to make standard, flat casing look like wider, more expensive milled trim, which is why it’s a favourite upgrade for anyone who wants a high-end result on a modest budget. This guide covers what back band is, why you’d add it, the profiles and sizes we carry, and how to install it over your existing casing.

Back Band vs. Plain Casing

The difference between plain casing and a casing with a back band is depth. A plain casing is a single flat or profiled board around the opening; a casing with a back band adds a second, smaller moulding along its outer edge that steps outward and raises the profile off the wall. That extra step catches light and shadow, giving the whole frame a layered, built-up appearance. If you’re starting from scratch, see our casing collection first — the back band is chosen to suit the casing it borders.

Where Back Band Is Used

Back band is used anywhere a casing could look more substantial — most often around interior doors and windows, but also on exterior openings, columns and built-up trim details. Indoors it adds a traditional, architectural weight to doorways and windows. Outdoors, in a suitable exterior-grade material, it frames entry doors and windows with the same stepped depth. It also works as an outer border on panelled columns and pilasters where a crisp, raised edge is wanted.

Why Add a Back Band to Your Casing

Adding a back band is the easiest way to turn flat, builder-grade casing into trim that looks custom and high-end. Rather than tearing out existing casing and replacing it with wide, expensive milled profiles, you keep the casing you have and add a slim moulding around its edge — a fraction of the cost and effort for a noticeably richer result.

Adding Depth & a Shadow Line

A back band works by creating a shadow line — the crisp line of shade where the raised moulding steps out past the casing. That shadow is what the eye reads as depth and quality. It makes the casing appear thicker and more deliberate, and it gives the trim a tailored edge that flat casing alone can’t achieve.

Upgrading Existing Casing

Yes — you can add a back band to casing that’s already installed, and it’s one of the most cost-effective upgrades in a room. Because the back band fastens to the outer edge of the existing casing, there’s usually no need to remove anything. It’s a popular move for homeowners who want a more high-end look without a full trim replacement, and for contractors adding value to a standard casing package.

Back Band Moulding Profiles & Sizes

Back band comes in a range of profiles and sizes, from slim, subtle steps to wide, heavier profiles that add serious depth. The right one depends on the width and style of the casing it borders and how much presence you want.

Common Back Band Profiles

Most back band profiles fall into two groups: a standard, everyday step and a wider, heavier version for a bolder frame. Each is matched to the casing it will border.

Standard Back Band Profile

The standard back band is a slim moulding suited to most interior door and window casings. It adds a clean, modest step without overwhelming the casing.

Dimensions & Step-Out

A standard back band steps out a small, consistent amount past the casing edge — enough to throw a defined shadow line while keeping proportions balanced on a typical 2-1/4″ to 2-1/2″ casing.

Best-Matched Casing Widths

The standard profile pairs best with narrower to mid-width casing, where a slim step keeps the frame looking intentional rather than heavy.

Wide / Heavier Back Band Profile

A wider, heavier back band adds more depth and works with broader casing or rooms with taller ceilings and larger openings, where a slim step would get lost.

Dimensions & Step-Out

The wide profile steps out further and sits taller off the wall, producing a deeper, more pronounced shadow line for a formal, substantial frame.

Best-Matched Casing Widths

Heavier back band suits wider casing and grander spaces, balancing the scale of a large door or window.

Matching Back Band to Your Casing

The most important rule with back band is to match it to your casing. The back band should complement the casing’s width and profile so the two read as one built-up piece, not two separate mouldings. Bring a sample or a photo of your casing to our showroom and we’ll help you pair a back band that suits it.

Reproducing an Existing Back Band Profile

If you’re matching trim in an older home, an existing back band profile can often be reproduced or closely matched. Bring in a short offcut and we’ll help you find the nearest stock profile — or advise on a custom match — so new work blends seamlessly with the original.

Back Band Materials: MDF, Primed & Solid Wood

Back band comes in MDF, pre-primed and solid wood, and the choice follows the same logic as your casing. For painted interior trim, MDF and primed back band give a smooth, seamless finish; for stain-grade work or higher-moisture and exterior use, solid wood is the pick.

MDF & Pre-Primed Back Band

MDF and pre-primed back band are ideal for painted work. They’re smooth, consistent and economical, and pre-primed stock arrives ready for topcoats — a fast way to add depth to painted casing.

Solid Wood Back Band

Solid wood back band — such as pine or poplar — is the choice for stain-grade trim and openings that need extra durability. Poplar paints cleanly and resists dents; pine is economical and takes stain or paint.

How to Install Back Band Over Casing

Installing back band is straightforward: measure, cut the profiles to length with mitred corners, and nail the moulding to the outer edge of the casing. Because it fastens to casing that’s already in place, it’s a manageable upgrade for both trades and confident DIYers.

Measuring How Much You Need

To work out how much back band you need, measure the outside perimeter of each casing — up one side, across the top, and down the other — total the openings, then add about 10% for mitre waste. Bring your opening counts to the store and we’ll confirm an exact quantity.

Mitring the Corners

Back band corners are mitred at 45° so the profile turns cleanly around the top corners of the casing. Cut and test-fit each corner before fastening; because back band follows the outer edge of the casing, accurate mitres are what make the step look continuous.

Outside vs. Inside Corners

Most back band corners are simple outside mitres at the top of the casing. Where a run of back band meets a wall or another surface at an inside corner, the joint is handled a little differently to keep the profile continuous.

Returns at Wall Ends

Where a back band ends at a wall or stops short of another piece, a return folds the profile back to the surface so no cut end is left exposed.

Gluing Mitred Returns

Because returns are small offcuts, they’re best glued in place rather than nailed, which would split them. A dab of wood glue holds a mitred return neatly at the end of a run.

Nailing to the Casing Edge

Fasten back band to the outer edge of the casing with finish nails, keeping the moulding flush and consistent along its length. Set the nails, fill the holes, and caulk the seam between the back band and casing before painting for a seamless, built-up look.

Back Band vs. a Wider Casing

If you want a bigger frame, you can either add a back band to your existing casing or replace it with a wider casing — and back band usually wins on cost and effort. Swapping in wide casing means removing existing trim and repainting; adding a back band keeps what’s there and layers depth on top. Wider casing gives a single, clean profile, while a back band gives a stepped, more traditional look — so the choice is part budget, part style.
